Drill Package

Light, powerful and cost effective with amazing thrust and pull back power, the EasyDrill FD10G horizontal directional drill is the only drill you need for installing utilities in difficult and congested areas

Turn your excavator or backhoe into a self-contained directional drill.  Simply disconnect your bucket, attach the drill, hook up the rod box and fluid system and you have a complete unit capable accessing the most challenging jobs.

The Drill package

The EasyDrill FD10G package includes:
  • 1 x EasyDrill drill unit, complete with CE approved zap alert and tester with leads.
  • 1 x standard fluid system with 300 litre water tank capacity complete with 5.5 hp Honda motor and Bertilini diaphragm pump unit
  • 1 x 500ml bottle of oil for Honda motor (motor is drained of oil when supplied)
  • 50 x drill rods in drill basket
  • 1 x Sonde housing complete with standard drilling blade and quick release coupling
  • 1 x 115mm dia back reamer with swivel
  • 2 x hydraulic hoses with quick release coupling to drill,
  • 1 x quick hitch adapter to suit your excavator ** (dimensions to be confirmed by customer)
  • 2 x stake down rods
  • 1 x pull back shackle
  • 1 x wash down gun
  • 1 x service/ instruction/spares manual

** Included in the package is one quick hitch adapter plate customized to suit your excavator.

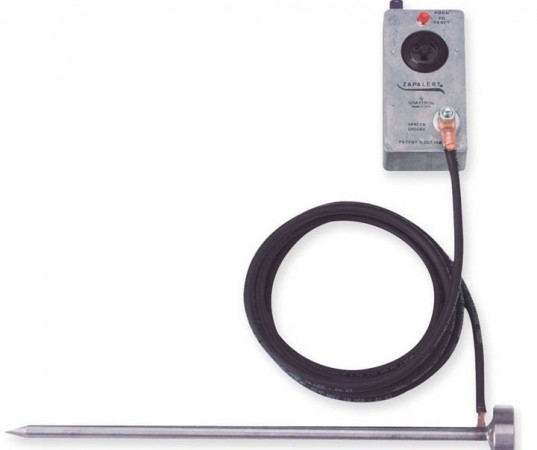

Zap alert system
Zap alert system

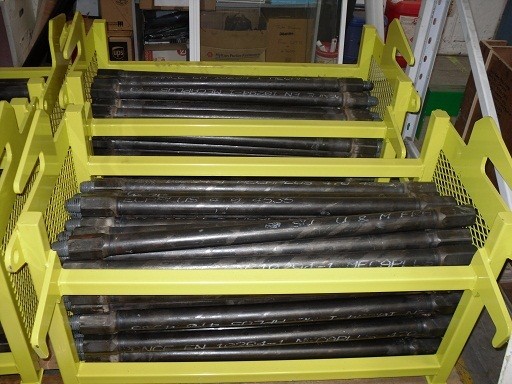

Rods in basket
Rods in basket

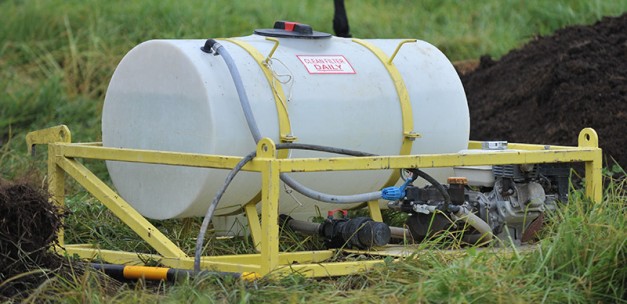

Fluid system
Fluid system

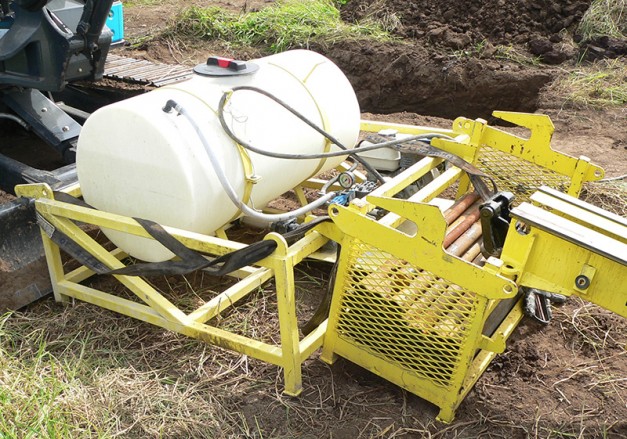

Fluid system rods in basket
Fluid system rods in basket
