Drill Specs

FD10G

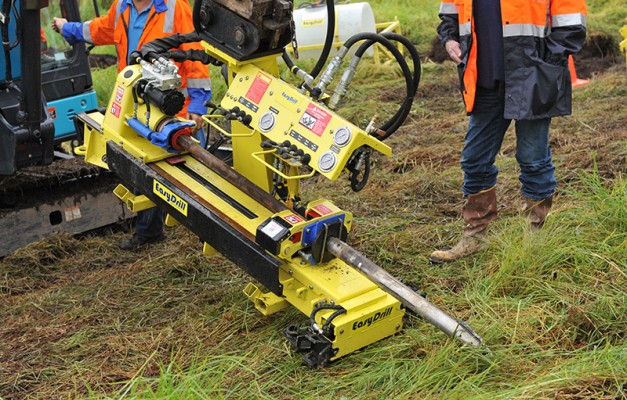

Light, powerful and cost effective with amazing thrust and pull back power, the EasyDrill FD10G horizontal directional drill is the only drill you need for installing utilities in difficult and congested areas

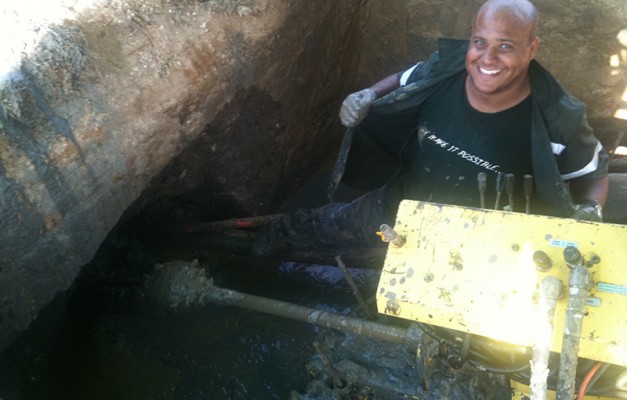

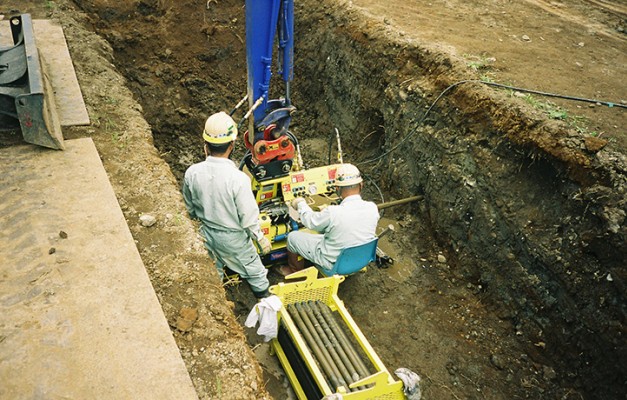

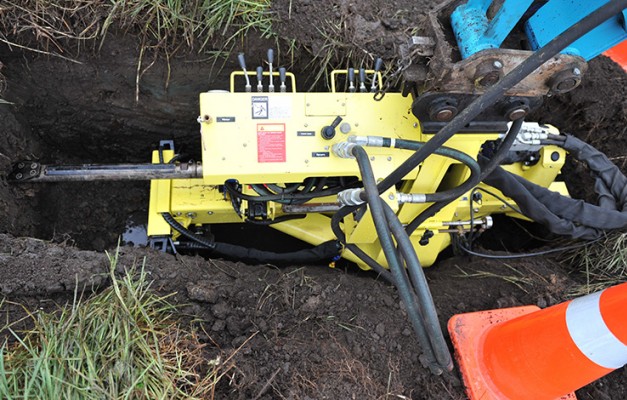

  • Surface launch and Pit launch
  • Rotate 360 degrees with + or – 90 degree launch angles
  • Quick to set up – easy to operate - extremely steerable
  • Attach to an excavator/backhoe loader
  • Minimise road closure and traffic control costs

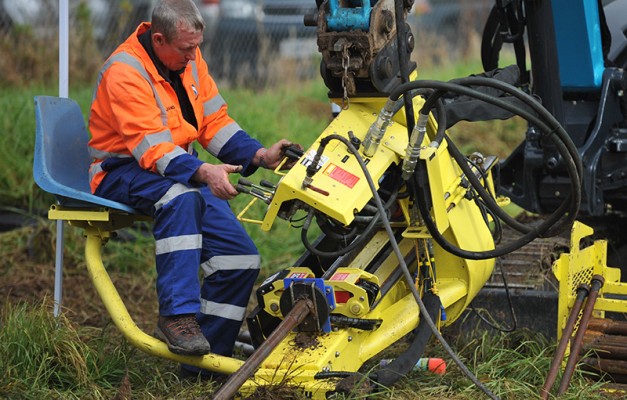

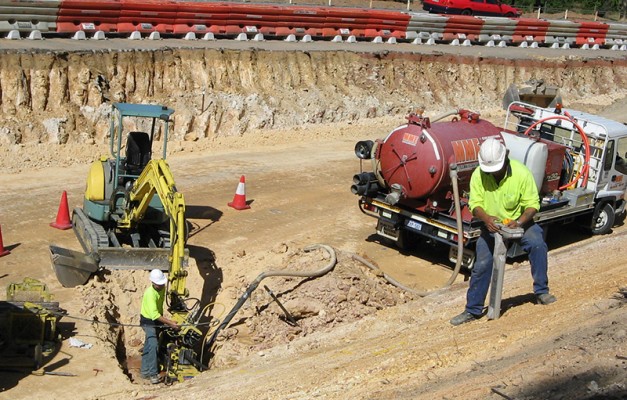

Turn your excavator or backhoe into a self-contained directional drill.  Simply disconnect your bucket, attach the drill, hook up the rod box and fluid system and you have a complete unit capable accessing the most challenging jobs.

SPECS

General Specifications

Thrust

8,000 lb's

3,628 kg's

Pull Back

10,500 lb's

4,764 Kg's

Rotary Torque

1,225 ft/lb's

1660 Nm

Spindle Speed

0-110 rpm

0-110 rpm

Drilling Fluid (pressure)

0-580 psi

0-40 bar

Drilling Fluid Flow

0-13 gpm

0-40 lpm

Drill Fluild Tank Capacity

80 Gallons

300 Litres

Pump Motor - Honda

5.5 Hp

4.1 Kw

Pump - Bertolini Diaphragm

Bentonite / Polymer

Bentonite / Polymer

Drill Rods (shoulder to shoulder)

36.6"

93cm

Number of Rods in Basket

50

50

Hydraulic requirements for Excavator / Backhoe

Oil flow

16 -21 gpm

60 - 80 lpm

Oil Pressure

3000 psi

200 bar

Component weights

Drill

425 kg

936 lb

Rod basket (full)

420 kg

925 lb

Fluid system (empty)

128 kg

282 lb

Palletised weight and dimensions (approximate only)

L - 220 cm x W - 165 cm x H - 130 cm

L - 7'2" x W 5'4" x H - 4'2"

Weight (approx) 1100 kg

Weight (approx) 2425 lb



Drill Parts

We offer a complete range of tooling -  Please contact us to discuss your requirements

  • Digitrak locator equipment
  • Sonde housing
  • Reamers
  • Bits and Blades
  • Drill heads
  • Duct Pullers – various sizes
  • Pulling swivels
  • Bentonite and polymers
